Reliable 5MP Surveillance for Home and Business Security

The Hikvision DS-2CE16H0T-ITF 5MP Bullet Camera is a high-performance analogue HD CCTV camera designed for clear day and night monitoring. With a 5MP CMOS image sensor and 2560 × 1944 resolution, it captures significantly more detail than standard 1080p CCTV cameras, making it suitable for monitoring entrances, driveways, shops, offices, warehouses, corridors, and other important areas. Its durable metal housing and IP67 weather-resistant construction also make it suitable for outdoor installations exposed to rain and dust.

---

Key Features

• 5MP High-Resolution Imaging – Captures video at up to 2560 × 1944 resolution for detailed surveillance footage.
• 5MP CMOS Image Sensor – Delivers clear and reliable image quality for security monitoring.
• EXIR 2.0 Infrared Technology – Advanced infrared illumination provides improved night-time visibility.
• Up to 20m IR Night Vision – Monitor important areas even in complete darkness.
• Smart IR – Helps optimise infrared illumination to reduce overexposure at night.
• Digital WDR – Improves visibility in scenes with both bright and dark areas.
• 2D Digital Noise Reduction – Helps reduce image noise for cleaner surveillance footage.
• 4-in-1 Video Output – Switchable TVI, AHD, CVI and CVBS output for flexible system compatibility.
• Multiple Fixed Lens Options – Available with 2.8mm, 3.6mm or 6mm fixed lenses.
• IP67 Weather Resistance – Protected against dust and water for dependable outdoor use.
• Metal Housing – Built for durable long-term CCTV installations.
• 3-Axis Adjustment – Flexible pan, tilt and rotation adjustment simplifies camera positioning.
• Hikvision-C Support – Supports up-the-coax communication when used with compatible TVI equipment.

---

High-Resolution 5MP Video

The Hikvision DS-2CE16H0T-ITF records at up to 2560 × 1944 resolution, providing detailed video that can help users identify people, objects and activity more clearly. This makes the camera suitable for locations where extra image detail is important, including:

• Home entrances
• Driveways
• Retail shops
• Offices
• Warehouses
• Building entrances
• Parking areas
• Commercial premises

---

EXIR 2.0 Night Vision up to 20 Metres

The camera uses Hikvision EXIR 2.0 infrared technology to provide reliable surveillance after dark. With an IR range of up to 20 metres, the DS-2CE16H0T-ITF can continue monitoring in areas with little or no visible light. EXIR technology is designed to distribute infrared illumination more effectively across the monitored scene, helping produce clearer night-time images.

---

Smart IR Technology

When a subject moves closer to a conventional infrared camera, strong IR illumination may cause parts of the image to become overexposed. The DS-2CE16H0T-ITF supports Smart IR, which helps manage infrared intensity to maintain more usable image detail at night.

---

Digital WDR for Challenging Lighting

Security cameras often need to capture scenes with strong lighting differences, such as a bright entrance combined with a darker indoor area. The camera’s Digital Wide Dynamic Range (DWDR) feature helps balance these conditions, improving visibility across both bright and shadowed sections of the image.

---

2D Digital Noise Reduction

The built-in 2D DNR feature helps reduce visual noise in surveillance footage. This is especially useful in low-light conditions, where digital noise can reduce image clarity.

---

Flexible 4-in-1 Video Output

The Hikvision DS-2CE16H0T-ITF supports four analogue video standards through a single video output:

• TVI
• AHD
• CVI
• CVBS

The signal can be switched depending on the connected DVR or CCTV system. This makes the camera suitable for both new installations and upgrades where compatibility with existing analogue infrastructure is important.

---

Multiple Fixed Lens Options

The camera supports several fixed lens configurations to suit different monitoring requirements.

2.8mm Lens

Provides a wider viewing angle of approximately 85.5° horizontally, making it suitable for general area monitoring.

3.6mm Lens

Provides approximately 80.1° horizontal viewing angle for a slightly narrower view.

6mm Lens

Provides approximately 57.1° horizontal viewing angle, making it more suitable when a tighter view is preferred.

---

IP67 Weather-Resistant Design

The DS-2CE16H0T-ITF is rated IP67, helping protect the camera against dust and water. Its metal housing makes it suitable for demanding indoor and outdoor CCTV installations. It can operate in temperatures ranging from approximately -40°C to 60°C, allowing use in a wide variety of environmental conditions.

---

Flexible 3-Axis Installation

The camera supports extensive physical adjustment for easier installation:

• Pan: 0° to 360°
• Tilt: 0° to 180°
• Rotation: 0° to 360°

This allows installers to position the camera accurately after wall or ceiling mounting.

---

Ideal For

The Hikvision DS-2CE16H0T-ITF is suitable for:

• Residential CCTV systems
• Houses
• Driveways
• Front gates
• Retail shops
• Offices
• Warehouses
• Factories
• Parking areas
• Building entrances
• Commercial properties
• Outdoor security monitoring

---

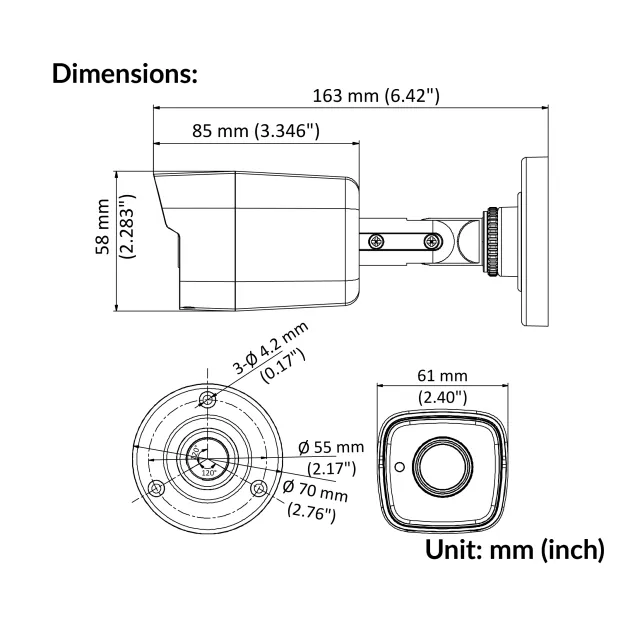

Technical Specifications

---

Compatible Accessory

The camera can be used with the Hikvision DS-1280ZJ-XS Junction Box for selected installations where protected cable termination and cleaner mounting are required. Accessory availability may vary and may be sold separately.

---

Why Choose the Hikvision DS-2CE16H0T-ITF?

The Hikvision DS-2CE16H0T-ITF 5MP Bullet Camera combines high-resolution surveillance, reliable night vision and flexible analogue compatibility in a durable outdoor-ready design. Its 5MP resolution, EXIR 2.0 night vision up to 20m, Smart IR, Digital WDR, IP67 protection and switchable TVI/AHD/CVI/CVBS output make it a practical option for both new CCTV systems and upgrades to existing analogue security installations. 5MP clarity. Reliable night vision. Flexible CCTV compatibility. [Download product datasheet]
